Lake Palo Pinto: 93.3% full as of 2026-04-01

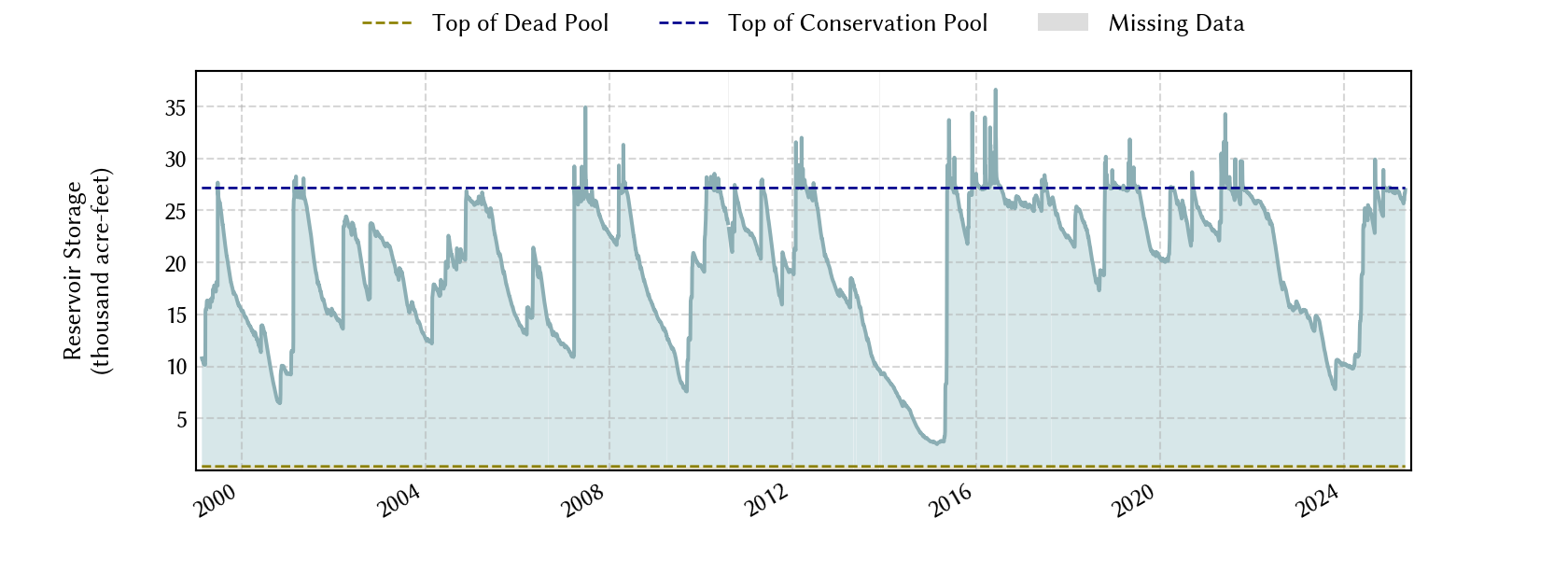

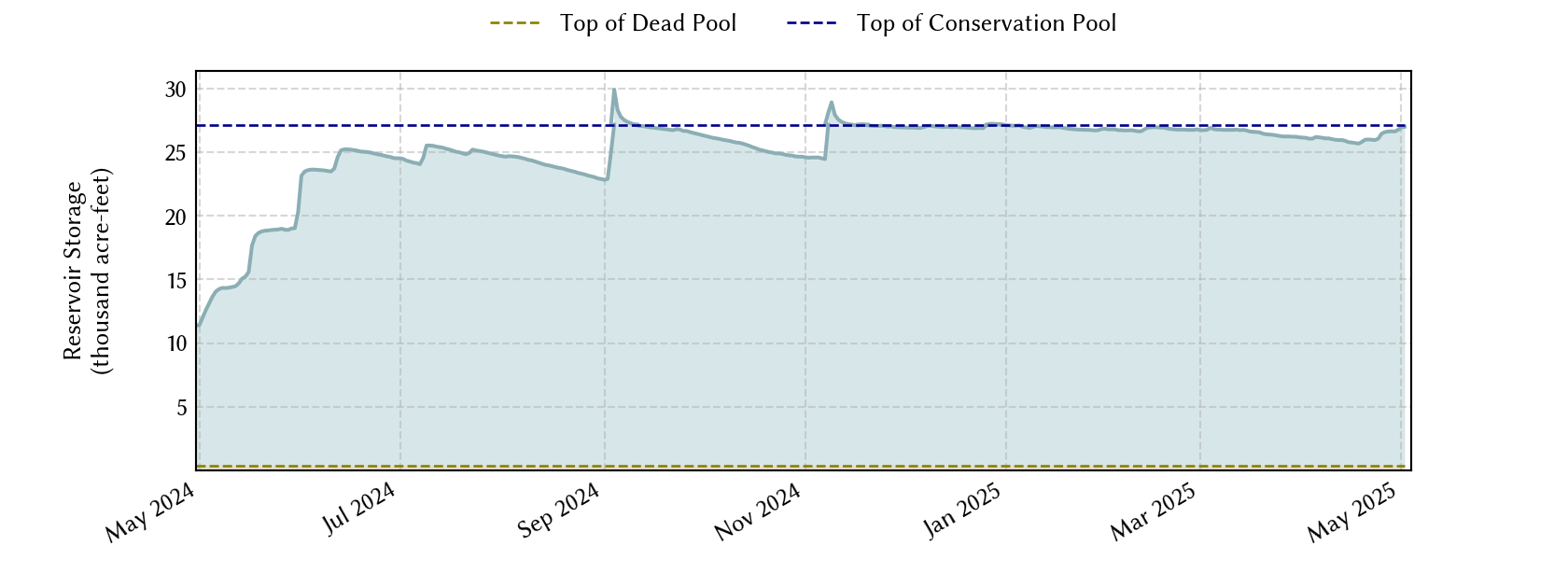

The elevation-storage rating curve used to produce the storage hydrograph is made of two segments: (1) the segment up to the conservation pool top (below the red line) is based on measured data, and (2) the segment in the flood pool (above the red line) is an extrapolation from the first segment and shouldn't be relied upon for flood storage information.

Historical Data

Date Percent Full Mean Water Level
(ft) 		Reservoir Storage
(acre-ft) 		Conservation Storage
(acre-ft) 		Conservation Capacity
(acre-ft) 		Surface Area
(acres)
Today 2026-04-01 93.3 866.17 25,361 24,975 26,766 2,141
Yesterday 2026-03-31 93.3 866.17 25,361 24,975 26,766 2,141
2 days ago 2026-03-30 93.5 866.19 25,404 25,018 26,766 2,142
1 week ago 2026-03-25 94.1 866.27 25,575 25,189 26,766 2,145
1 month ago 2026-03-01 93.9 866.24 25,511 25,125 26,766 2,144
3 months ago 2026-01-01 96.0 866.50 26,070 25,684 26,766 2,154
6 months ago 2025-10-01 83.7 864.96 22,799 22,413 26,766 2,094
1 year ago 2025-04-01 95.6 866.46 25,984 25,598 26,766 2,153
*

Percent Full is based on Conservation Storage and Conservation Capacity and doesn't account for storage in flood pool.

**

   Values above, including today's are averaged conditions. For near real-time instantaneous water level, see table below or the interactive map viewer.

Most Recent Instantaneous Water Level

Date/time Water Level
(ft) 		Conservation Pool Elevation
(ft) 		Height Above Conservation Pool
(ft)
Most recent 2026-04-01 21:15 866.16 867.00 -0.84
1 hour prior 2026-04-01 20:15 866.19 867.00 -0.81
2 hours prior 2026-04-01 19:15 866.16 867.00 -0.84
6 hours prior 2026-04-01 15:15 866.20 867.00 -0.80
12 hours prior 2026-04-01 09:15 866.16 867.00 -0.84
24 hours prior 2026-03-31 21:15 866.17 867.00 -0.83
48 hours prior 2026-03-30 21:15 866.19 867.00 -0.81
*

Data is provisional and subject to revision.

Additional Information

Impoundment date 1964-04-16
Vertical datum NGVD29
Dead pool elevation
Start date: 2007-06-01 		835.00 ft above NGVD29
Dead pool elevation
End date: 2007-06-01 		835.00 ft above NGVD29
Emergency spillway crest elevation 867.00 ft above NGVD29
Top of dam elevation 898.00 ft above NGVD29
Conservation pool elevation
Start date: 2007-06-01 		867.00 ft above NGVD29
Conservation pool elevation
End date: 2007-06-01 		867.00 ft above NGVD29
Data download (CSV) period of record, last one year, last 30 days

Elevation-Area-Capacity Curves

2007-06-01 (source: TWDB) : GIS Data
Data Source USGS:08090300

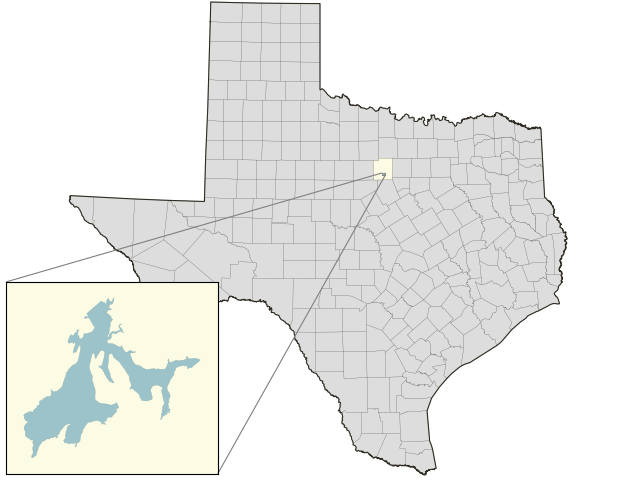

Lake Location
