Lake Georgetown: 68.7% full as of 2025-05-21

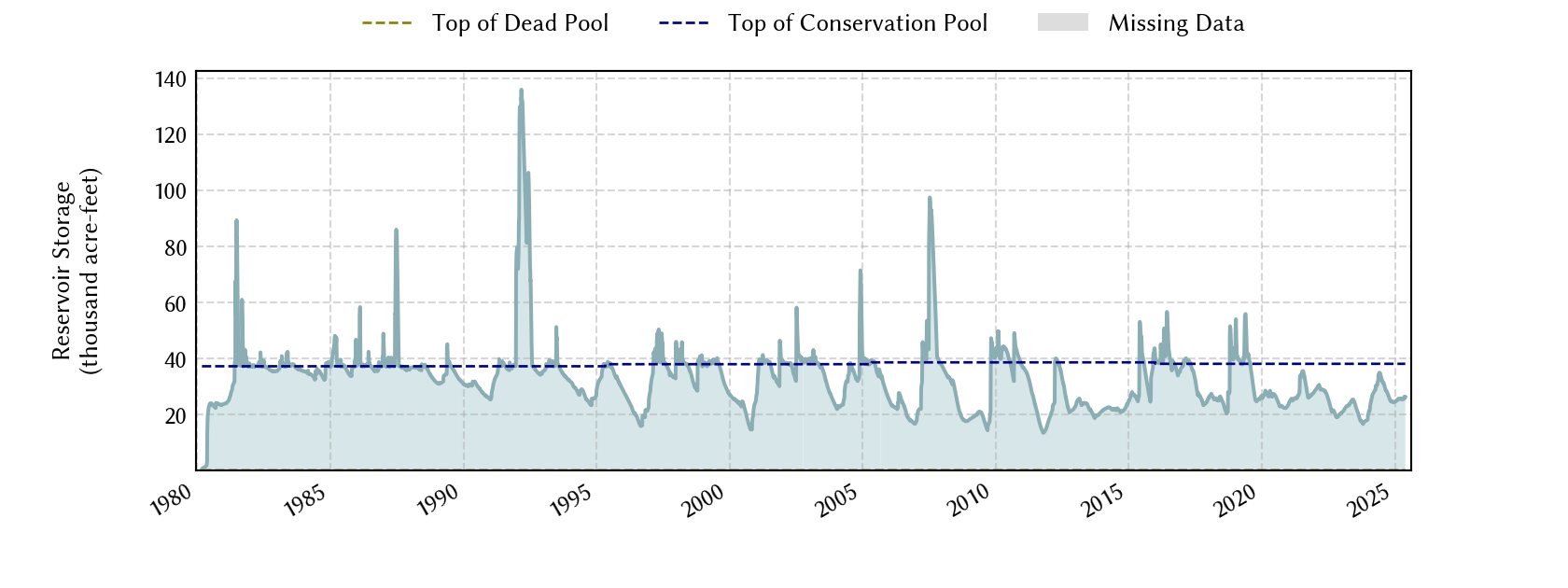

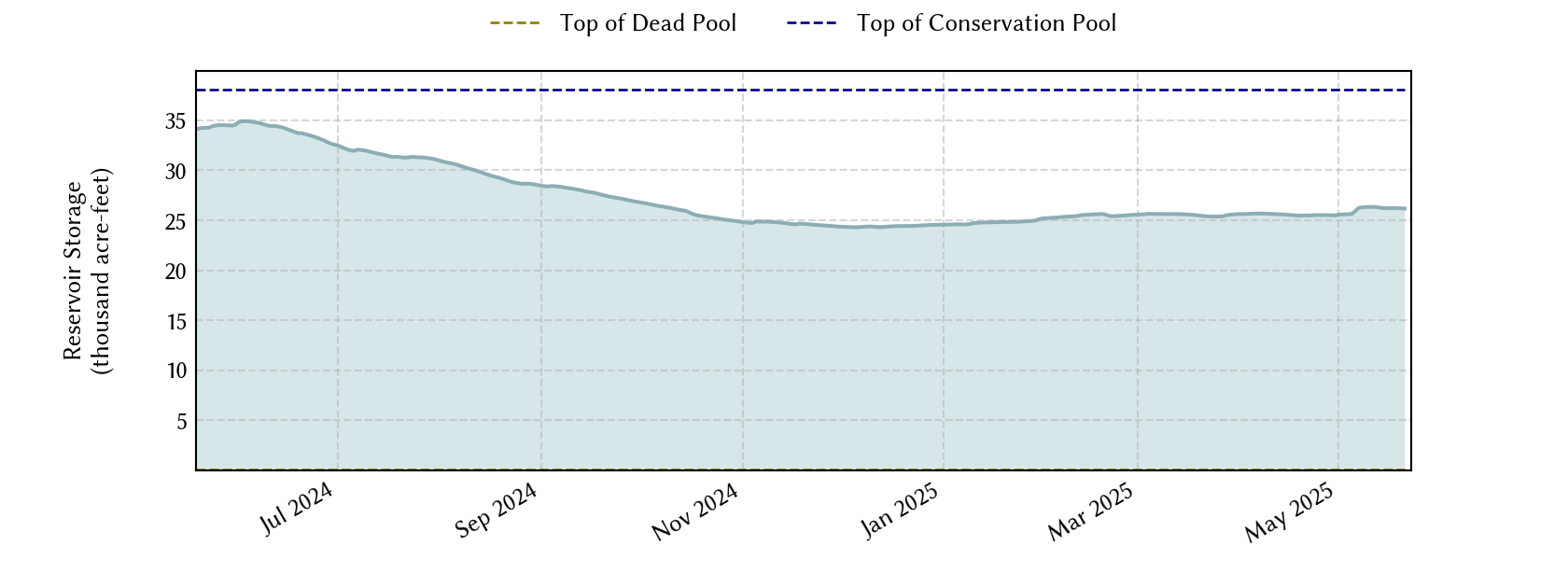

The elevation-storage rating curve used to produce the storage hydrograph is made of two segments: (1) the segment up to the conservation pool top (below the red line) is based on measured data, and (2) the segment in the flood pool (above the red line) is an extrapolation from the first segment and shouldn't be relied upon for flood storage information.

Historical Data

Date Percent Full Mean Water Level
(ft) 		Reservoir Storage
(acre-ft) 		Conservation Storage
(acre-ft) 		Conservation Capacity
(acre-ft) 		Surface Area
(acres)
Today 2025-05-21 68.7 780.87 26,188 26,125 38,005 1,040
Yesterday 2025-05-20 68.8 780.88 26,198 26,135 38,005 1,041
2 days ago 2025-05-19 68.8 780.89 26,208 26,145 38,005 1,041
1 week ago 2025-05-14 68.9 780.92 26,240 26,177 38,005 1,042
1 month ago 2025-04-21 66.9 780.20 25,497 25,434 38,005 1,023
3 months ago 2025-02-21 66.7 780.11 25,405 25,342 38,005 1,020
6 months ago 2024-11-21 64.6 779.31 24,596 24,533 38,005 1,002
1 year ago 2024-05-21 89.9 787.97 34,234 34,171 38,005 1,227
*

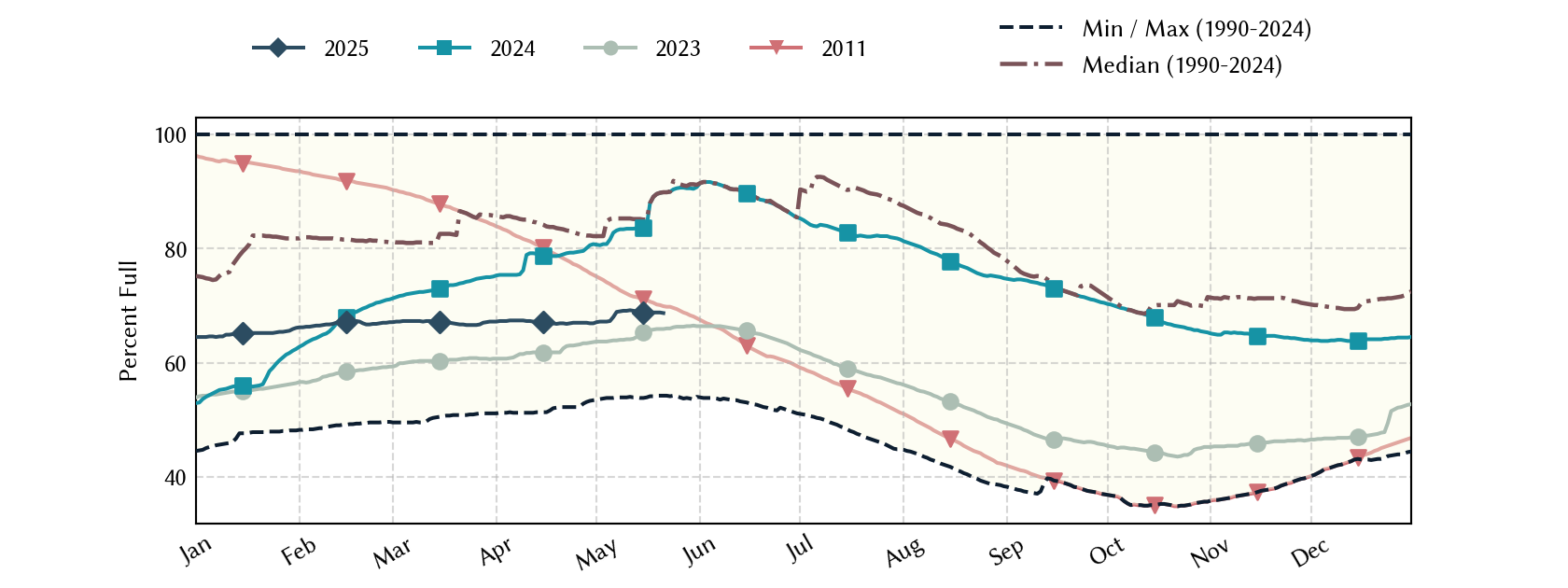

Percent Full is based on Conservation Storage and Conservation Capacity and doesn't account for storage in flood pool.

**

   Values above, including today's are averaged conditions. For near real-time instantaneous water level, see table below or the interactive map viewer.

Most Recent Instantaneous Water Level

Date/time Water Level
(ft) 		Conservation Pool Elevation
(ft) 		Height Above Conservation Pool
(ft)
Most recent 2025-05-21 06:00 780.87 791.00 -10.13 below flood pool
1 hour prior 2025-05-21 05:00 780.87 791.00 -10.13 below flood pool
2 hours prior 2025-05-21 04:00 780.87 791.00 -10.13 below flood pool
6 hours prior 2025-05-21 00:00 780.87 791.00 -10.13 below flood pool
12 hours prior 2025-05-20 18:00 780.88 791.00 -10.12 below flood pool
24 hours prior 2025-05-20 06:00 780.89 791.00 -10.11 below flood pool
48 hours prior 2025-05-19 06:00 780.90 791.00 -10.10 below flood pool
*

Data is provisional and subject to revision.

Additional Information

Impoundment date 1979-01-01
Vertical datum NGVD29
Dead pool elevation 720.00 ft above NGVD29
Service spillway crest elevation 834.00 ft above NGVD29
Emergency spillway crest elevation 834.00 ft above NGVD29
Flood pool elevation 834.00 ft above NGVD29
Maximum design elevation 856.20 ft above NGVD29
Top of dam elevation 861.00 ft above NGVD29
Conservation pool elevation 791.00 ft above NGVD29
Data download (CSV) period of record, last one year, last 30 days

Elevation-Area-Capacity Curves

1979-01-01 (source: USGS)
1995-05-01 (source: TWDB) : GIS Data
2005-05-01 (source: TWDB) : GIS Data
2016-01-01 (source: TWDB) : GIS Data
Data Source USGS:08104650

Lake Location
